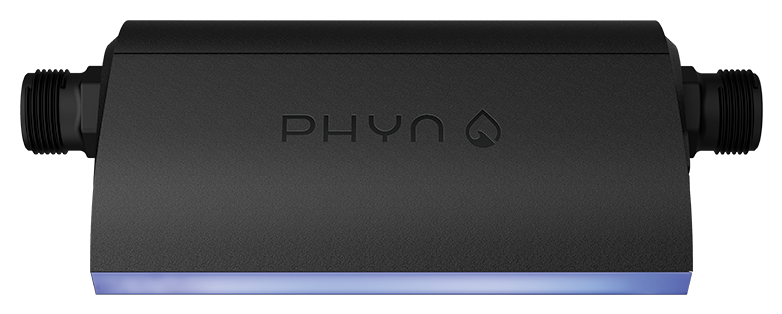

Phyn Plus

Smart water assistant + shutoff

Phyn Plus uses patented, high-definition pressure wave analysis to alert you the second a leak is detected, mitigate costly damage through automatic water shutoff and teach you about your water use.

Use code “cyber100” at checkout to save $100.

$699

$599with code

Cyber Sale Ends 12/6/20

Phyn Plus

Smart water assistant + shutoff

Phyn Plus uses patented, high-definition pressure wave analysis to alert you the second a leak is detected, mitigate costly damage through automatic water shutoff and teach you about your water use.

Use code “cyber100” to save $100 at checkout.

$699

$599with code

Cyber Sale Ends 12/6/20

The Most Accurate Leak Detection Solution

In a recent third party study, Phyn Plus was found to be the most reliably accurate whole home leak detection solution across multiple flow thresholds.

Read the full report

Auto Shutoff mitigates damage
Auto Shutoff mitigates damage

With Phyn Plus’ built-in shutoff valve, you can remotely turn off the water, and Phyn Plus can turn your water off automatically in the event of a leak.

KEY FEATURES: PLUMBING CHECKS

KEY FEATURES: PLUMBING CHECKS

Keep your home watertight
Keep your home watertight

SMS or push notifications from the free Phyn app alert you at the first sign of a possible issue and can connect you to a plumber in minutes.

Turn off water at the main, run Phyn’s Plumbing Check feature and in minutes you can detect a range of hidden flaws like poor seals and pinhole leaks in your water system.

Turn off your tap, with a tap
Turn off your tap, with a tap

The Phyn app lets you shut off your water from anywhere, giving you the peace of mind that if there’s a leak when you’re away from home, you can now stop it.

KEY FEATURES: LEAK ALERTS

KEY FEATURES: LEAK ALERTS

Get alerted to leaks
Get alerted to leaks

SMS or push notifications from the free Phyn app alert you at the first sign of a possible issue and can connect you to a plumber in minutes.

SMS or push notifications from the free Phyn app alert you at the first sign of a possible issue and can connect you to a plumber in minutes.

KEY FEATURES: MULTI-PROPERTY

KEY FEATURES: MULTI-PROPERTY

Monitor multiple properties
Monitor multiple properties

Monitor water use and receive leak alerts for up to 6 properties from one account in the Phyn app.

KEY FEATURES: PRE-FREEZE WARNINGS

KEY FEATURES: PRE-FREEZE WARNINGS

Prevent frozen pipe bursts
Prevent frozen pipe bursts

Get notified before freeze conditions set in, giving you precious time to take action and avoid damage from frozen pipes.

Stay on top of your water use
Stay on top of your water use

Get ahead of your water bills. Monitor how much water your family is using monthly, daily, and even hourly in the Phyn app.

KEY FEATURES: WATER USE PLUS

KEY FEATURES: WATER USE PLUS

Stay on top of your water use
Stay on top of your water use

Track and view your water use daily and monthly and see how your home compares to others. Over time, Phyn learns gives you insights into your water usage down to each fixture.

previous arrow
next arrow
previous arrownext arrow
Slider

Measuring pressure waves.

240 times a second.

The science behind Phyn was developed in the labs of the University of Washington and at Belkin. Phyn Plus measures tiny changes in pressure 240 times every second to understand the unique voice of each water fixture in your home. This allows Phyn understand the subtle differences between a running bath and a burst pipe.

High Def Ultrasonic Flow Sensor

Phyn Plus is the only connected water monitor to offer an ultrasonic flow sensor, exclusively built by Badger Meter, with no moving parts, ensuring accuracy and durability over the long haul. Other water monitors use turbine flow sensors with rotating discs that are less accurate, and often degrade over time or can get stuck by debris or buildup.

One device. Whole home protection.

Other water monitors require you to place multiple sensors around the home where you think leaks are likely to occur. One Phyn Plus in a single location is all you need to monitor your entire home’s water system for leaks.

Phyn needs:

Main water supply line 1 1/4″ or smaller

WiFi at install location

Unswitched power outlet under your sink

Phyn works best with:

Home Type

Single family homes and townhomes that are plumbed individually. Live in a condo or apartment building?

Pressure reducing valves

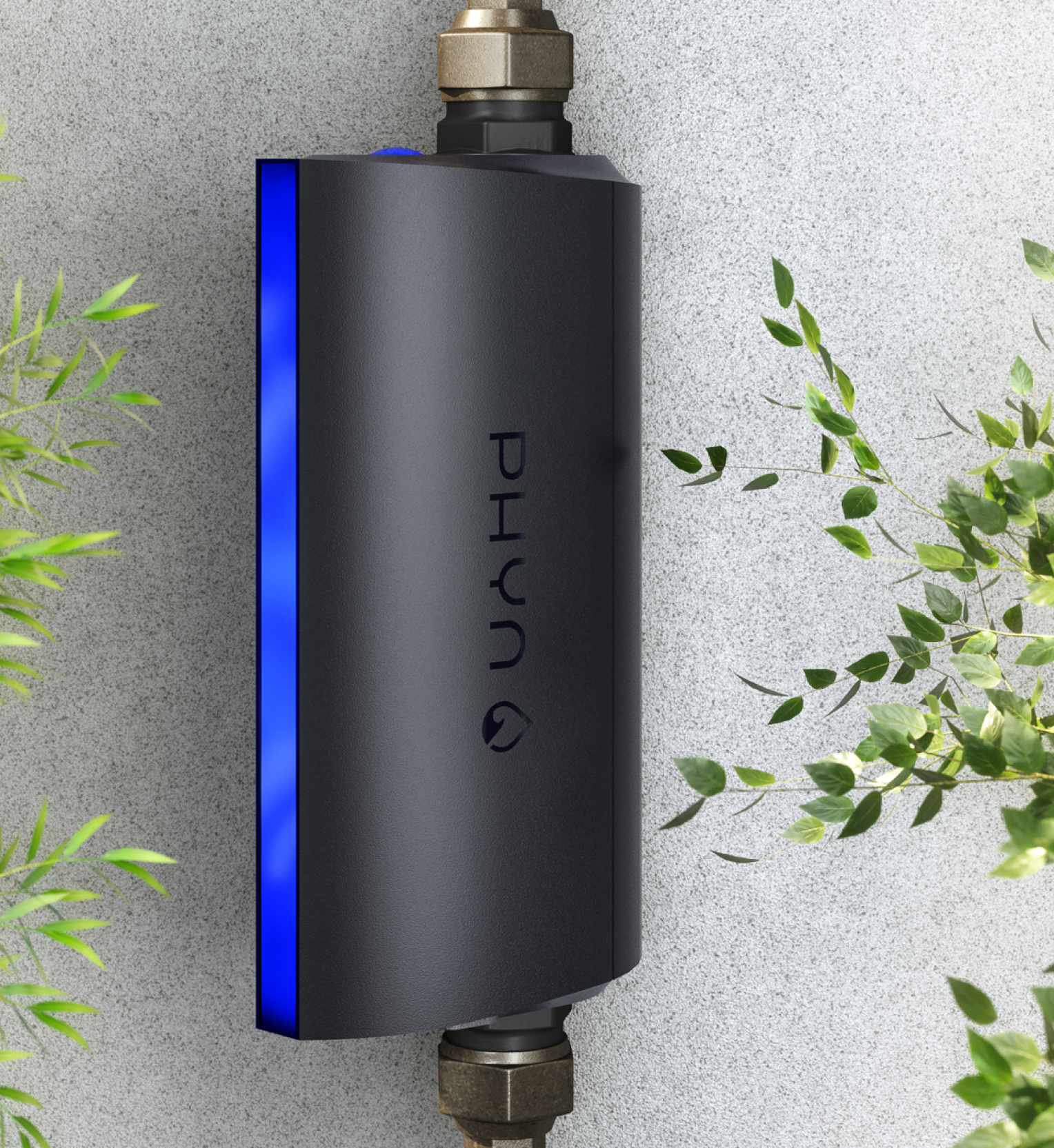

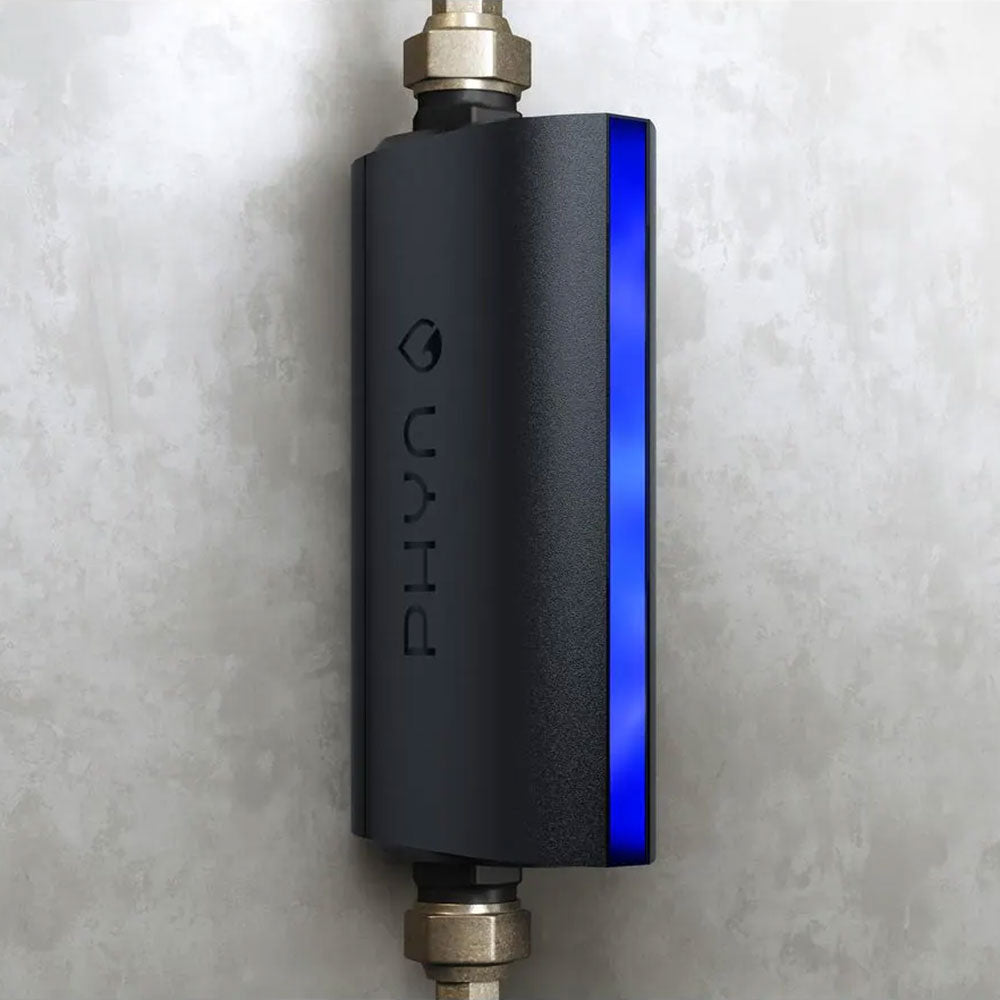

Indoors or out, Phyn Plus is built to last

Developed to withstand harsh winters and desert summers. Phyn went above and beyond to ensure that Phyn Plus is the most durable and reliable water monitoring solution available.

Indoors or out, Phyn Plus is built to last

Developed to withstand harsh winters and desert summers. Phyn went above and beyond to ensure that Phyn Plus is the most durable and reliable water monitoring solution available.

Phyn plays well with others

Phyn works seamlessly with Amazon Alexa and Google Assistant. And with IFTTT you can have Phyn trigger actions with other smart home products.

Your family’s water is safe with Phyn Plus

Phyn Plus is exclusively manufactured by Badger Meter, based out of Milwaukee, Wisconsin. A global leader with 110+ years of water metering expertise and innovation, Badger holds every Phyn Plus to the same rigorous potable water standards as utility meters already installed in millions of homes.

The Phyn Plus difference

The water your family drinks and bathes in flows through Phyn Plus, so we sought out a manufacturing partner that takes your water as seriously as we do.

Phyn Plus Installation

We recommend that Phyn Plus be installed by a licensed plumber. We’ve partnered with the Uponor Pro Squad to provide you with premium installation services, or you can hire your own local plumber.

Technical Specifications

Installation

Designed to work universally with as many existing plumbing systems and materials as possible. Installs horizontally or vertically

Fitting Size

1” threaded male ends, designed to adapt to different fittings

Features

Easy setup
Free Phyn app (no subscriptions)
Leak alert notifications
Water use charts + comparisons
Automatic + remote water shut-off
works with: Alexa, Google Home, IFTTT
Diagnostic Plumbing Checks
Manual shut-off tool
External antenna port

Pressure

Maximum working pressure: 125 psi

Antennas

Dual internal antennas
External antenna port (external antenna not included)

Certifications

NSF/ANSI 61: Drinking Water System Components; Health Effects
NSF/ANSI 372: Drinking Water System Components; Lead Content
IP55 rated: Sealed against foreign particles and water
RoHS 2011/65/EU Compliant: Hazardous Substances
HALT tested to Military standard-810G: Heat / UV / Cold / Humidity
State of Massachusetts Plumbing Board Approved
UL 1310/60950
CAN/CSA C22.2

Location

Indoor/outdoor rated

Power

110/220V 19W power supply
15 foot outdoor rated power cable
GFCI outlet recommended

Connectivity Requirements

Wi-Fi connection
Phone or tablet with iOS 12 +, Android 8 +
SMS text messaging
Free Phyn app

Wireless

802.11 b/g/n @2.4Ghz

Shut-Off Valve

Full bore construction
Electronic for remote control
Custom designed manual water shutoff override tool
1280_phyn_plus_section_11

Frequently asked questions

Installation typically takes one to two hours, and depends on the location of your main water supply.

We recommend that you use a licensed plumber to install Phyn Plus. The main water line to your home will be cut where Phyn Plus is installed. We have partnered with the Uponor Pro Squad to bring you local plumbers that have expertly-trained to ensure that Phyn Plus is installed properly, and to meet all local code requirements. You can also use your own licensed plumber.

Yes, you can use your own plumber to install Phyn Plus. We have included instructions that you can give to them in the Phyn Plus box. They must follow these instructions carefully to ensure proper installation.

We recommend that Phyn Plus be installed on pipes no larger than 1 ¼ inches.

Phyn Plus has 1” NPSM male threaded ends. When you purchase online, we include connectors in the box: 3/4″ Water Meter Coupling Complete with Gasket, 1″ NPSM, 2-1/2″ Length, 3/4″ NPT.

Absolutely! Phyn Plus has been installed on many homes with wells.

Once installed, Phyn will learn how you normally use water in your home. After this initial learning period, which is different for every home, it will unlock the ability to turn off your water automatically in the event of an abnormally high flow. Phyn will always send you an alert when a potential leak is detected, and will give you the power to turn off your water remotely using the free Phyn app.

If you have a fire sprinkler system that is standalone and is on its own branch of pipes (not integrated into the same pipes that deliver water to your fixtures) then Phyn Plus can be installed as long as it is placed after where your sprinkler line branches off. Phyn Plus should not be installed where it will interfere with your fire sprinkler operation.

Yes. You will need an electrical outlet within 15 feet of where the device is installed (we recommend a GFCI equipped outlet). Phyn Plus comes with a 15-foot power cord.

Phyn Plus is intended for single family homes, with individual water meters. However, some multi-family dwellings that have individual plumbing lines and meters for each unit are compatible with Phyn Plus. Typically a PRV will also need to be installed in each unit as well.

Phyn Plus will remain in the state it was in when the power is lost. It will not turn off your water unless it was already in the closed position. In the event of power loss, you can use the manual shut off tool included on the mounting bracket to turn your water on and off.

Yes. If your Phyn Plus device is able to be installed so that it is “before” your irrigation lines, then your irrigation will be monitored for leaks and usage.

Phyn Plus is installed on the main water line, right after your water meter or where the water enters your home and before your pipes split off to the various rooms and fixtures of your home.

If your installation location is out of the range of your home’s Wi-Fi, Phyn Plus has a universal antenna port located on the bottom of the unit. Any external antenna can be plugged into this port to improve your Wi-Fi reception.
